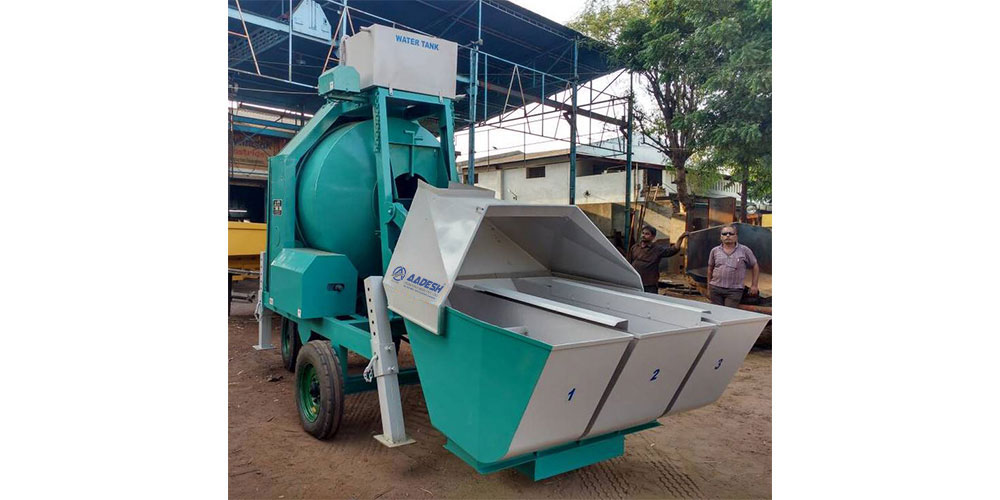

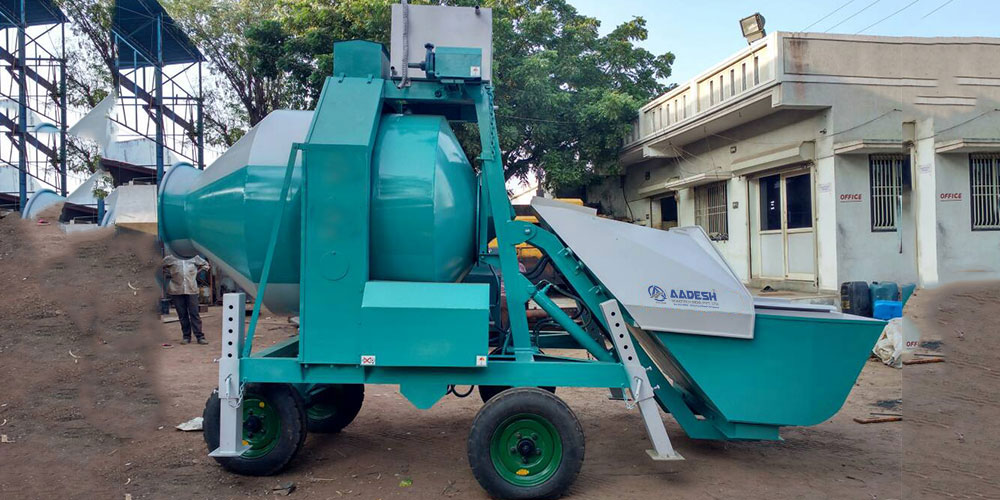

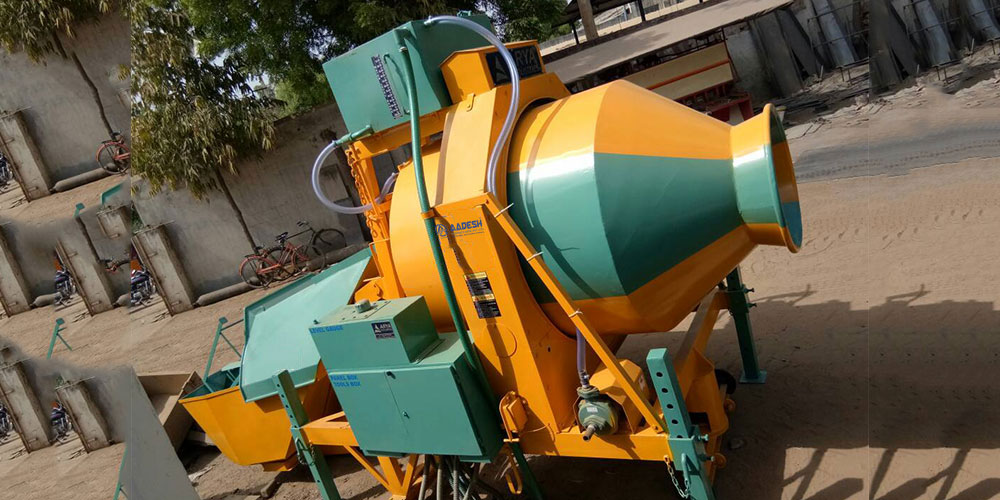

Reversible Concrete Mixer(Mini Batching Machine) RM Series
A new innovation from AadeshRoadtechmade for the site where electrical supply is not available so we had combined the diesel engine with unique reversible drum mixer so one has to carry only one unit instead of separate DG and machine. We have proven our state of the art work and design and this machines are widely used across India. This machine has all the unique features like separate weighing of material, auto water dozing system, tow bar facility and micro processor based control panel.
Technical Specification
Model | RM 800 DI | RM 1050 DI |
---|---|---|
Output capacity/ Hour | 10 – 12 M³ | 12 - 15 M³ |
Mixer type | Reversible drum type mixer | |
Mixing and discharge of concrete | Forward rotation of the drum mix the material and reverse rotation of the drum discharge the concrete | |
Main drive of the mixer | 16 HP Air cooled Diesel engine | 20 HP air cooled diesel engine |
Material weighing system | Digital load cell based weighing of material | |
Water tank capacity | 200 litre | 250 litre |
Water feeding system | Auto water dozing system | |
Pneumatic tyres | 4 no | 4 no |
Hydraulic tank capacity | 200 litre | 250 litre |
Centralized lubrication system | Inbuilt centralized lubrication system | |
Tow bar facility | Yes | Yes |
Control panel | micro processor based control panel | |
Hydraulic oil cooler | Yes | Yes |
12V DC battery | 80 AMP | 80 AMP |
