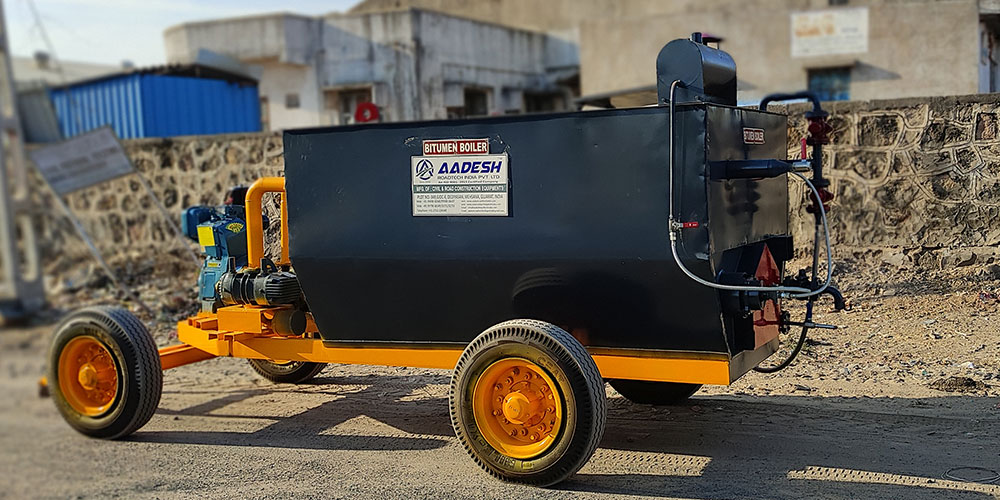

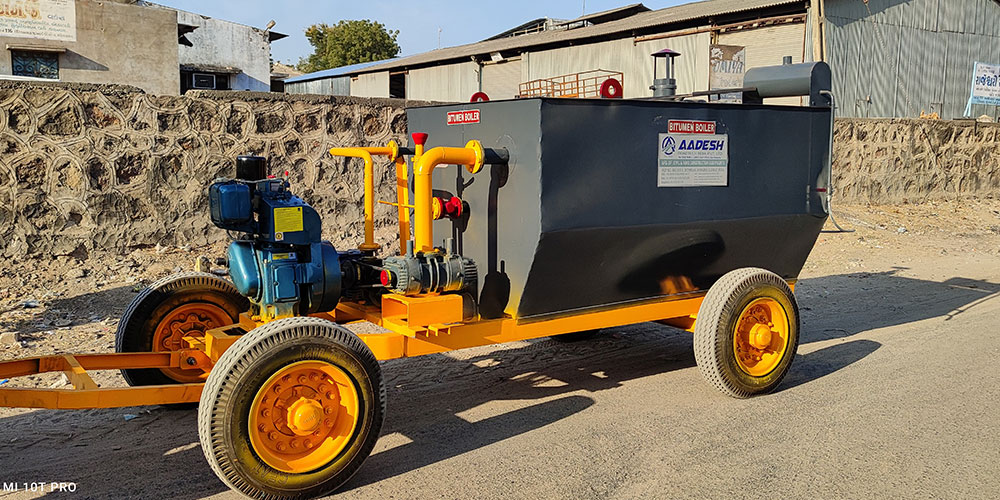

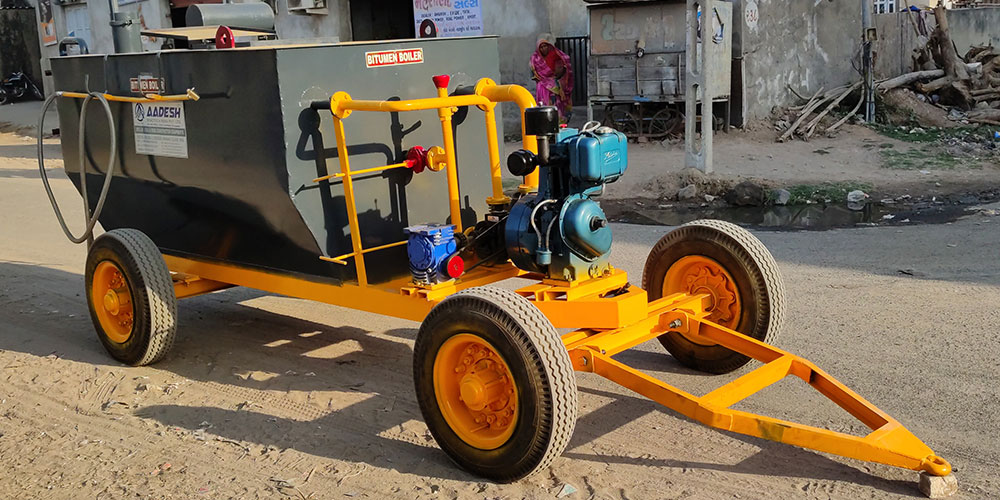

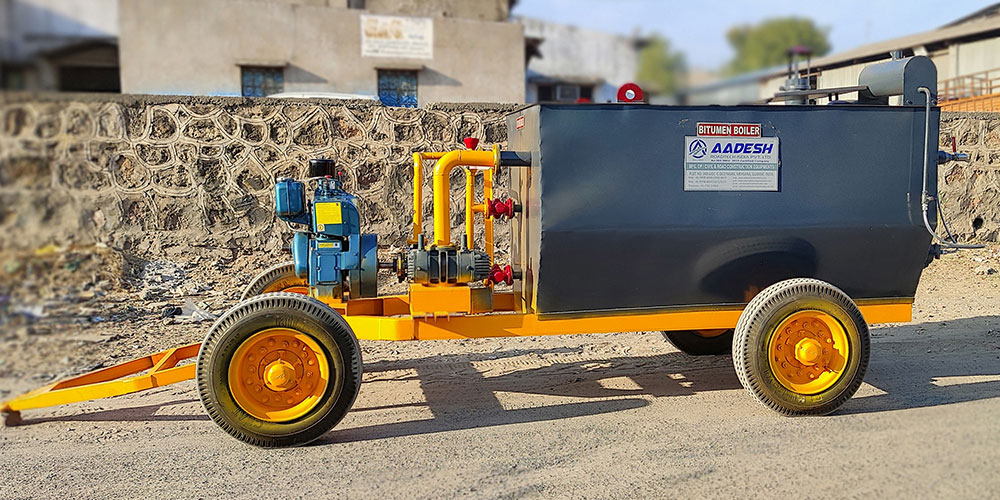

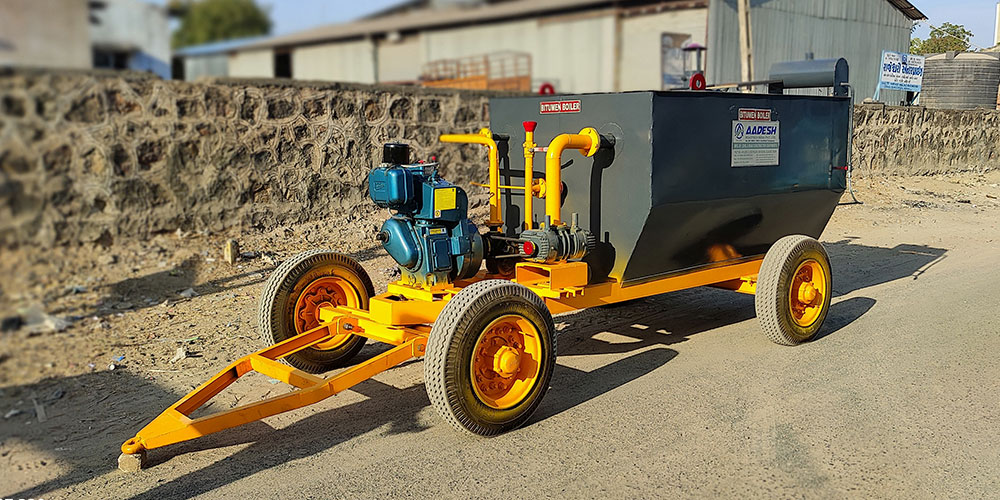

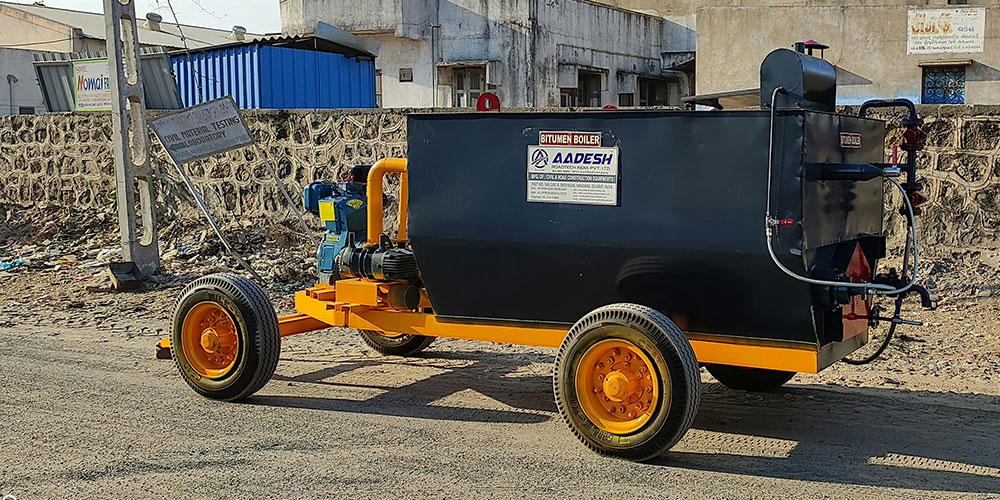

Bitumen Emulsion Sprayer With Compressor
Technical Specification
| TANK DEATALS | ||
|---|---|---|
| Model | SKE - 2500 | SKE - 3000 |
| Capacity | 2500 Ltes. | 3000 Ltes. |
| Length - L | 2000 mm | 2400 mm |
| Width - W | 1500 mm | 1500 mm |
| Height - H | 1380 mm | 1400 mm |
| Bitumen input hole | 750 mm | 750 mm |
| Insulation | 40 mm Glass Wool | 40 mm Glass Wool |
| Shape | U-Trapazoidal | U-Trapazoidal |
| Spraying Arrangement | Hand Spary Nozzle with 2 nos. Wooden Handled gun pipe. S.S. Corrugated Spray pipe for hot bitumen. OR R - 2 Rubber Hose pipe for Emulsion. |
|
| Bitumen Pump | 1.5" x 1.5" / 2" x 2" Size Pressure Pump specially design for hot bitumen and emulsion bitumen. |
|
| Reduction Gear | 3 NU Worm type driven by pully - V Belt system by engine. | |
| Air Blower | Twin Lobe Blower/2 HP - 2800 RPM. Air blower driven by pulley - v Belt system by engine for burner combusting. |
|
| Burner | Bozzer Burner/L.A.P Type,Fuel Tank : 50 ltr. | |
| Wood Bhatti | 6 mm thich for wooden fire furnace middle at tank with chimney and ash removal. | |
| Axle Types(Four Tyre) | Rear - 1 No. 7 x 50 x 16, Front - 1 No. 7 x 50 x 16 (Tyre - 4 Nos.) | |
| Axle Types(Two Tyre) | Rear - 1 No. Rear - 9 x 16 (Tyre - 2 Nos.) | |
| Temperature gauge | 0 - 300 ºc | |
| Drum Lifting | Drum Loading by 1 ton. Cap Chain pulley block - movable to tank bitumen input hole. | |
| Engine | Kirlosker make or ISI make 6 HP / 6.5 HP / 7.5 HP/8 HP/10 HP AT 1500 rpm. | |
| Cleaning | Unique pressure cleaning system after used of spraying by L.D.O / Kerosine / Diesel. | |
Optional
- High Capacity Air Blower with 10 Mtr. Length Air pipe for Dust Removal. (Optional)
- Extra arrangement for Gas burner.
- Wood fire boiler.
- Rear wheel spring plates.
- Different Storage Capacity Models available from 1.5 tons to 3 tons.
