Mobile Concrete Batching Plant

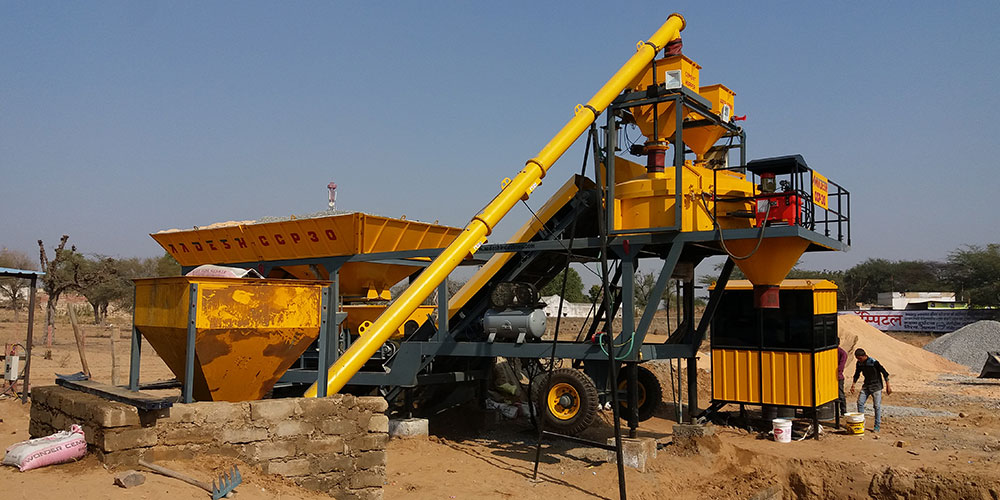

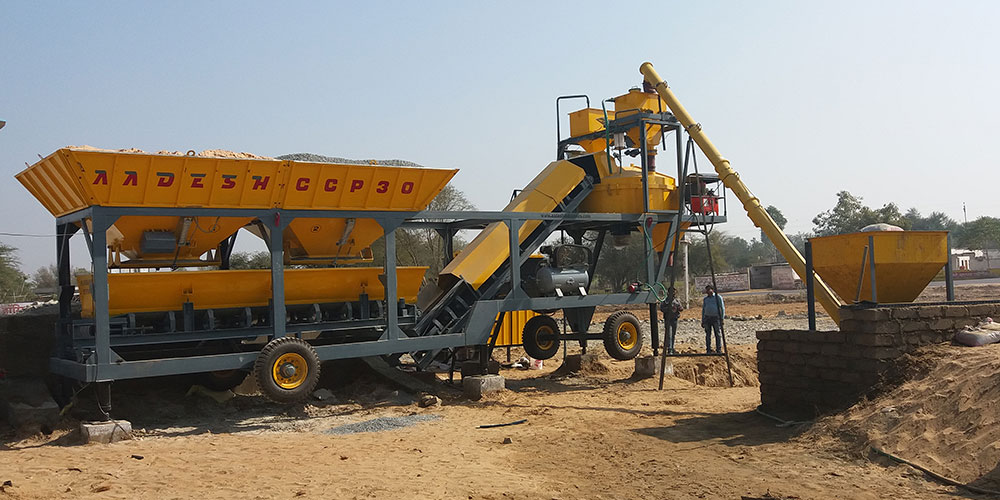

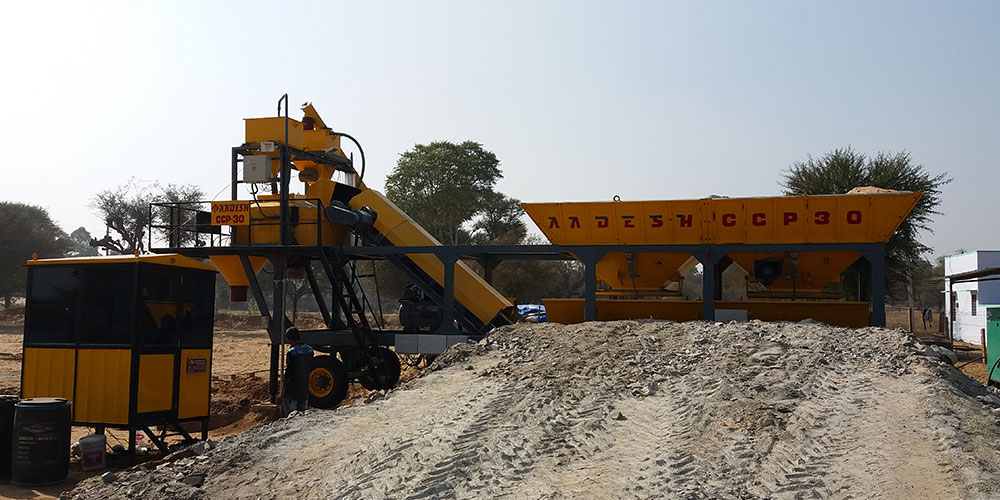

First of its kind giving discharge height of 2 meter from the ground level which makes it useful for using concrete pump as well as transit mixer on site where plant is shifted frequently at various site location to meet the concrete requirement . Fully automatic mobile type batching plant with whole plant assembly on single chassis with tow bar facility. With the help of tractor one can easily move the plant on site and easy to erect and commission the plant as no need to make foundations and control panel is also fitted on the same chassis with internal cabling and inbuilt water tank.
Technical Specification
| Model | CCP 20 | CCP 25 | CCP 30 | CCP 45 |
|---|---|---|---|---|
| Output capacity | 20 M³/ Hr. | 25 M³/Hr. | 30 M³/Hr. | 45 M³/Hr. |
| Mixer type | Pan type mixer/ Planetary mixer/ Twin Shaft mixer | |||
| Main mixer drive | 20 HP | 25 HP | 30 HP | 40 HP |

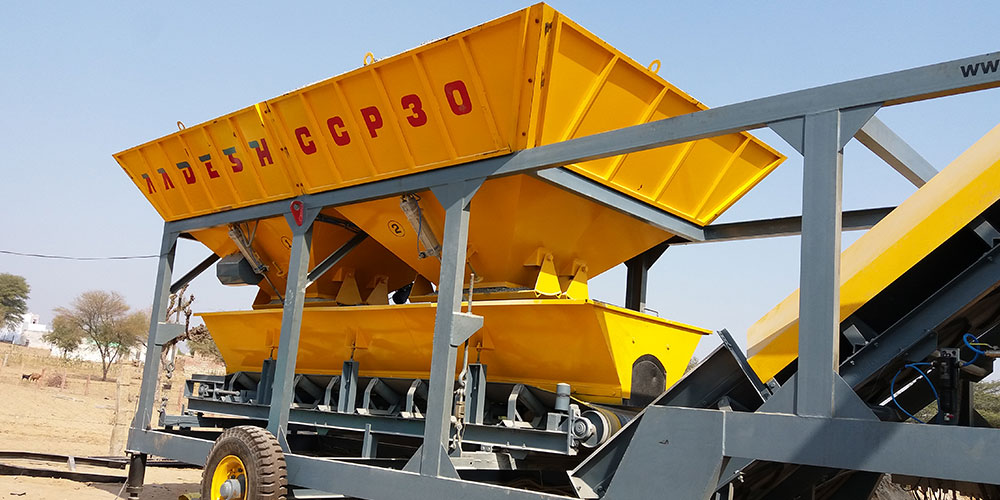

| Material storage system | 2 x 2 Cross bin feeder | |||
| Material storage capacity | 12 M³ | 12 M³ | 14 M³ | 20 M³ |
| Material weighing system | Digital load cell based weighing of aggregates, cement ,water and additive | |||

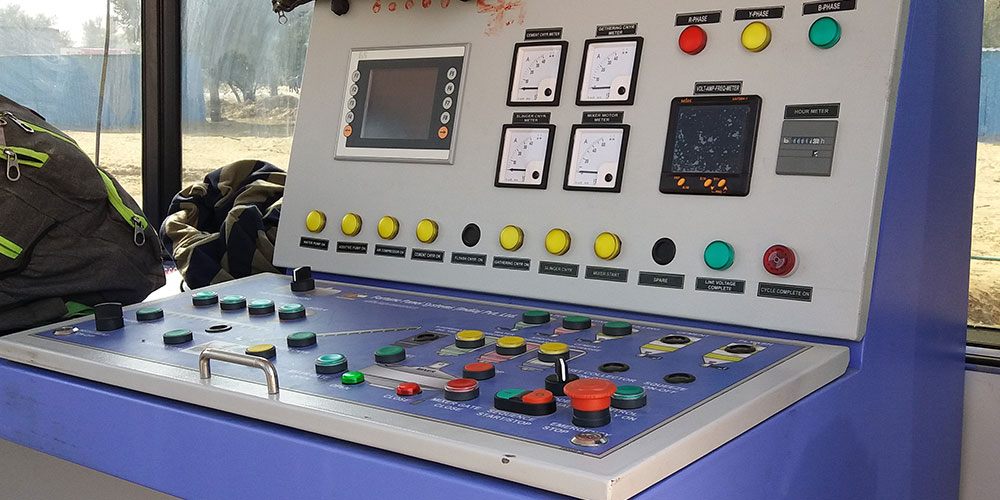

| Control panel | PLC based control panel with internal cabling | |||
| Total connected power | 45 HP | 50 HP | 58 HP | 79 HP |
| Suggested DG Set | 50 KVA | 62 KVA | 82 KVA | 100 KVA |
| Concrete discharge Height | 2.1 Meter from the ground level | |||
Optional Accessories
- Computer SCADA system and Software
- Fly ash feeding system
- Prefab Cabin for control panel
