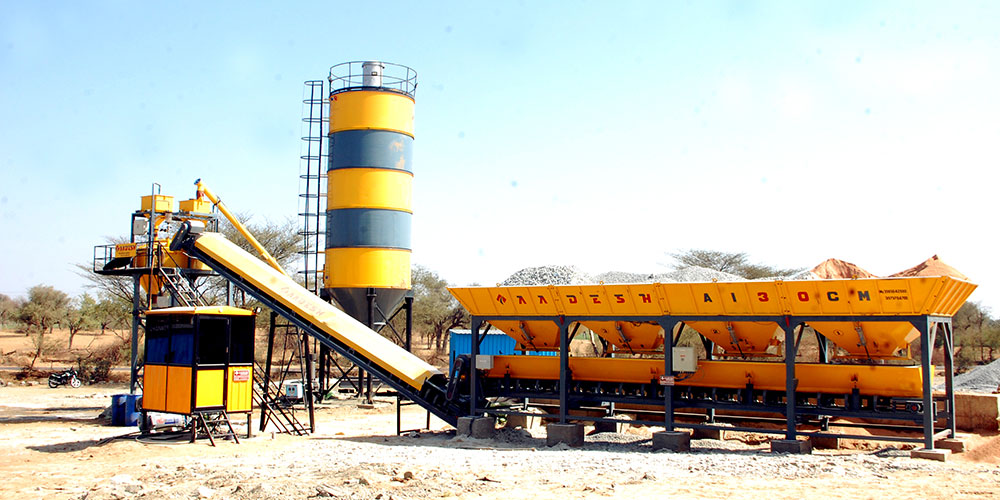

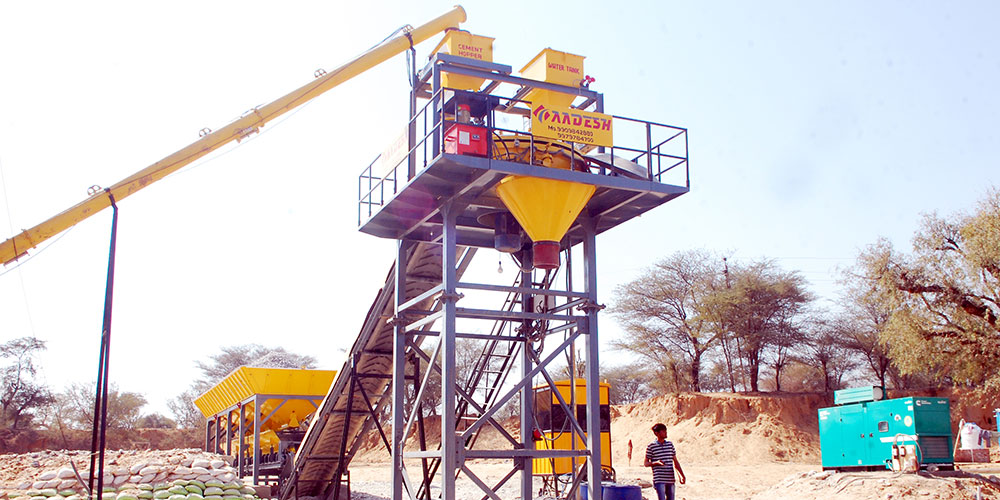

Stationary Concrete Batching Plant (Ar St Series)
/1.jpg)
/2.jpg)
/3.jpg)
/4.jpg)
/5.jpg)
/6.jpg)
AADESH make stationary type concrete batching plants are made to meet the requirement of market needs. Having in built R & D Department, unique mixer unit, and state of the art machine design, combined with latest PLC based control panel we have made the concrete work simple and hassle free. This new generation of batching plants are easy to operate and having least operation and maintenance cost.
Technical Specification
| Model | AR ST 20 | AR ST 30 | AR ST 45 | AR ST 60 | AR ST 75 | AR ST 90 | AR ST 120 |
|---|---|---|---|---|---|---|---|
| Output capacity | 20 M3 / Hr. | 30 M3/ Hr. | 45 M3/ Hr. | 60 M3/ Hr. | 75 M3/ Hr. | 90 M3/ Hr. | 120 M3/ Hr |
| Mixer unit | Turbo pan mixer/ twin shaft mixer | ||||||
| Main mixer reduction gear box | Imported planetary reduction gear | ||||||
| Main drive/ electrical motor | 20 HP | 30 HP | 40 Hp | 60 HP | 60 HP | 50 HPx2 nos | 75 HPx2 nos |

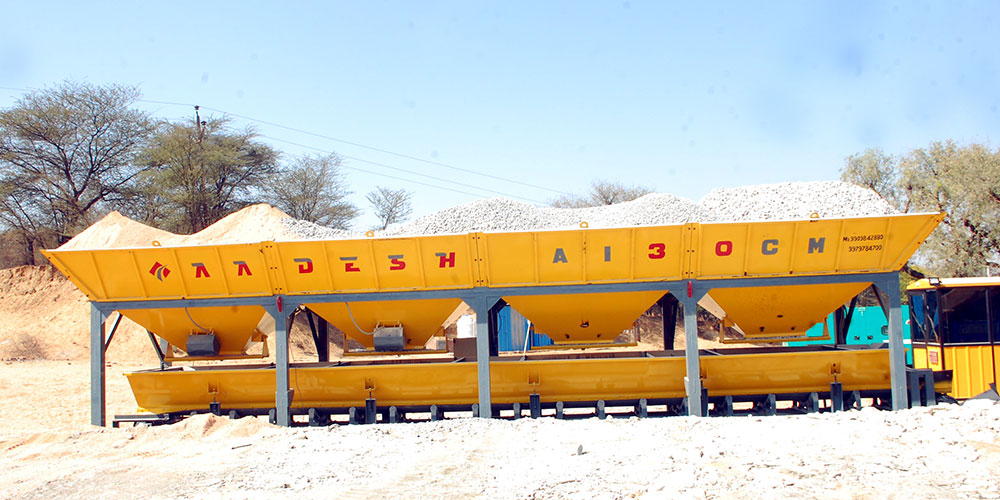

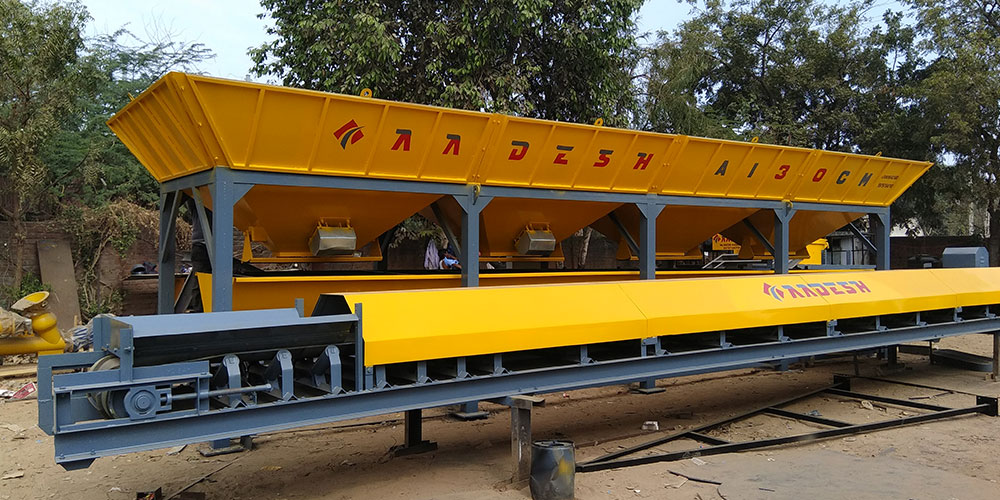

| Material storage unit | 2x2 cross bin | In line four bin feeder | |||||
| Material storage capacity | 20 M3 | 30 M3 | 40 M3 | 60 M3 | 60 M3 | 90 M3 | 100 M3 |
| Material weighing system | Digital load cell based weighing of material | ||||||
| Batch feeding system | Through inclined belt conveyor/inclined skip bucket | ||||||
| Cement feeding system | Through screw conveyor | ||||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||||
| Ad mixture | Digital load cell based auto admixture dozing system | ||||||
| dozing system | |||||||

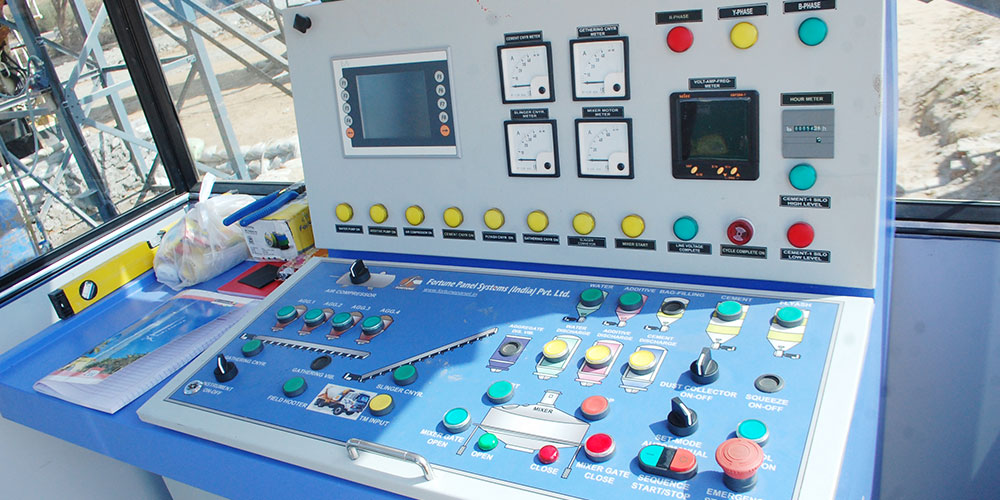

| Control panel | Fully automatic PLC based control panel | ||||||
| Control cabin | Provided | ||||||
| Concrete discharge height from G.I. | 4.0 meter from the ground level | ||||||
| Total connected power ( HP ) | 52 HP | 74 HP | 87 HP | 120 HP | 145 HP | 200 HP | 275 HP |
| Suggested DG Set | 62 KVA | 82 KVA | 125 KVA | 160 KVA | 200 KVA | 300 HP | 400 HP |
Optional Accessories
- Computer SCADA system and software
- Cement storage silos
- Fly ash feeding system and storage silos
- Moisture controlling system
- Water chilling plant
