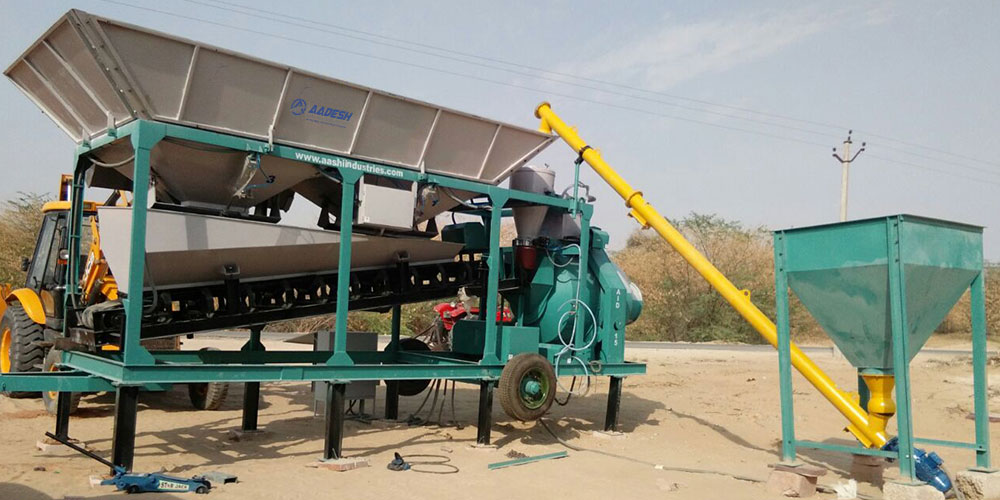

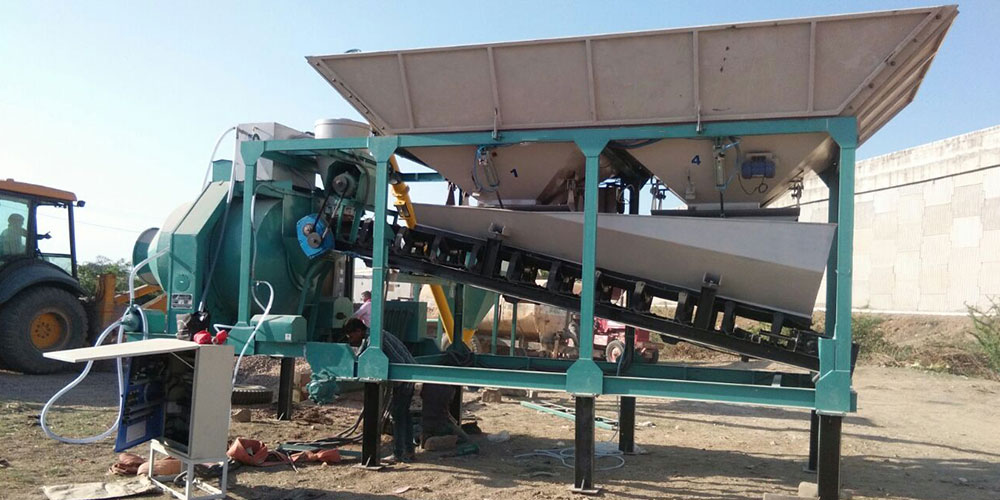

Mobile Concrete Batching Plant With Reversible Drum Mixer
Another mobile type concrete batching plant series which comes with proven reversible drum type concrete mixer which is highly appreciated by the industry. Economic design and very cost effective than other mobile type concrete batching plants as it has very low operating cost and less connected power hence consumes less electricity.
Technical Specification
| Model | RMB 15 | RMB 20 | ECO 24 |
|---|---|---|---|
| Output capacity | 15 M³/ Hr. | 20 M³/ Hr. | 30 M³/ Hr. |
| Material Storage Capacity | 10 M³ | 12 M³ | 14 M³ |
| Material Weighing System | Digital load cell based weighing | ||
| Total Connected Power | 25 HP | 30 HP | 43 HP |
| Suggested DG Set | 40 KVA | 50 KVA | 62 KVA |
