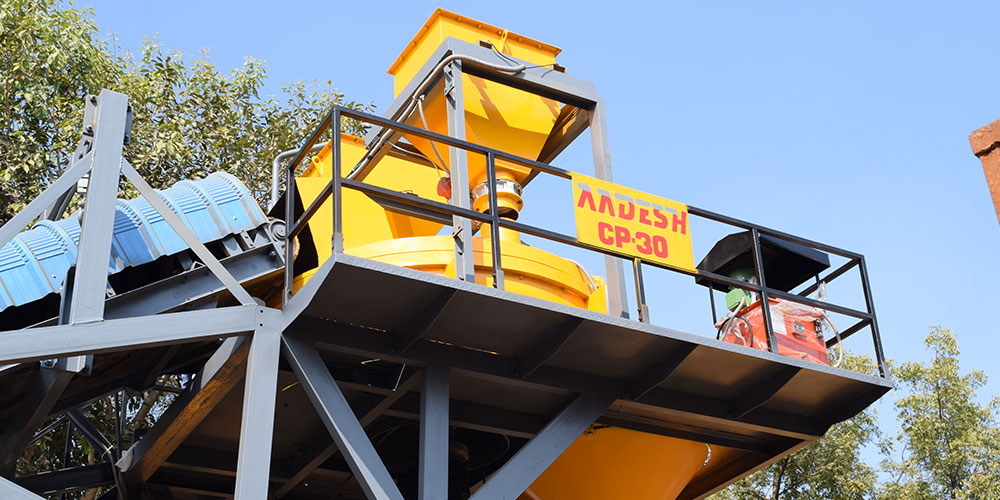

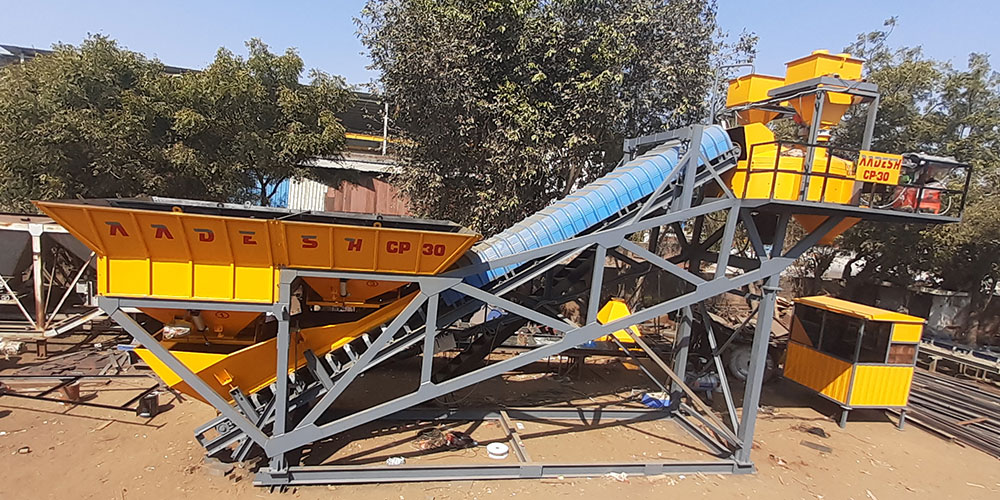

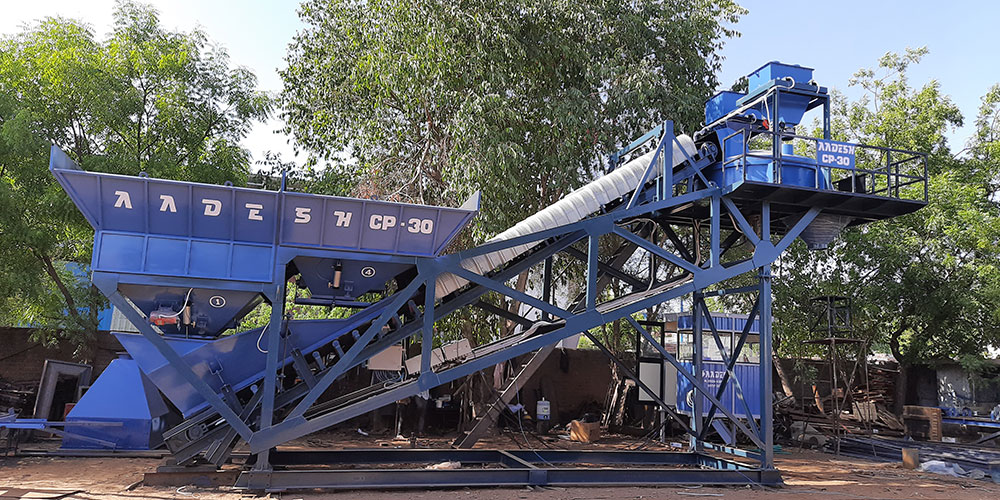

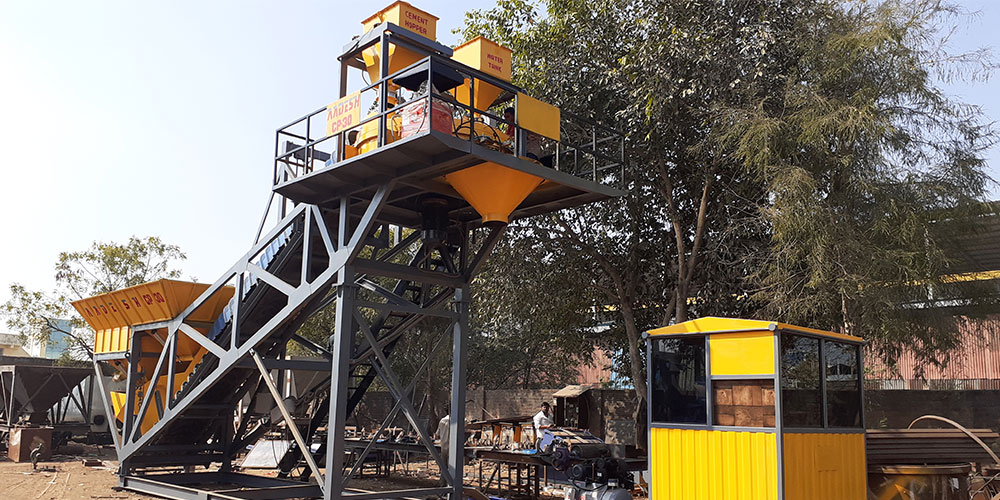

Compact Concrete Batching Plant (CP Series)
/1.jpg)
/2.jpg)
/3.jpg)
/4.jpg)
/5.jpg)
/6.jpg)
Best design suitable for RMC projects because it consume less space on site and gives accurate output, having whole plant assembly on single chassis with provision of material feeding conveyor so no need to make ramp to feed the bins of the plant, comes with PLC based control panel which makes plant operating easy and trouble free, having availability of fabricated skid to avoid civil foundation work at site at additional cost.
Technical Specification
| Model | CP 20 | CP 25 | CP 30 | CP 45 | CP 60 |
|---|---|---|---|---|---|
| Output capacity | 20 M³/ Hr. | 25 M³/Hr. | 30 M³/Hr. | 45 M³/Hr. | 60 M³/Hr. |
| Plant assembly | Whole assembly on single chassis | ||||
| Mixer type | Turbo pan type mixer/ twin shaft mixer | ||||
| Main reduction gear | Imported Planetary gear box | ||||
| Main mixer drive | 20 HP | 25 HP | 30 HP | 40 HP | 50 HP |

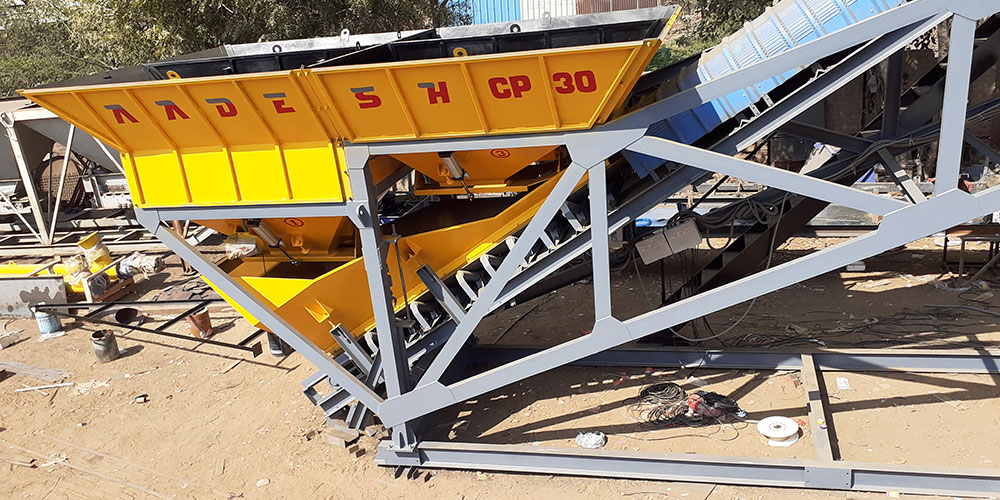

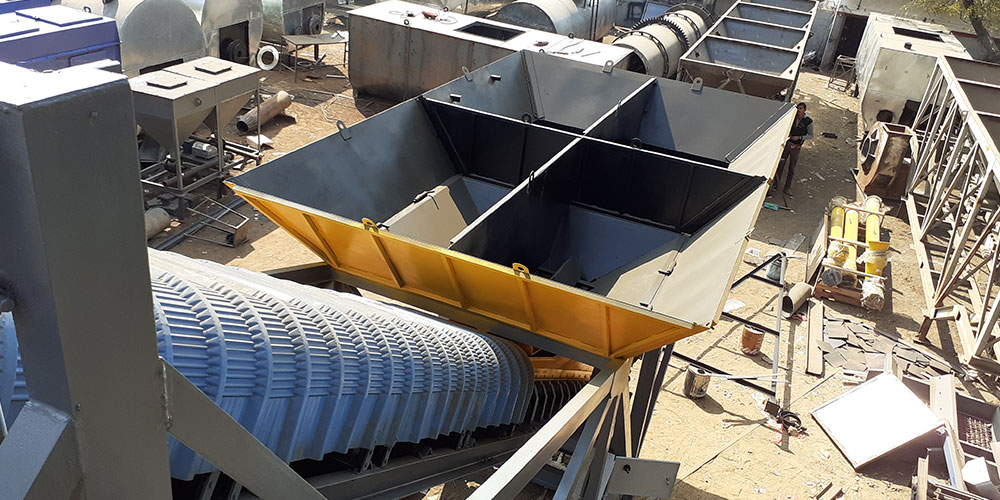

| Material storage system | 2 x 2 cross bin feeder | ||||
| Material storage capacity | 14 M³ | 14 M³ | 20 M³ | 25 M³ | 30 M³ |
| Material weighing system | Digital load cell based weighing system | ||||
| Material feeding system | Through inclined belt conveyor | ||||
| Cement feeding system | Through inclined screw conveyor | ||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||
| Admixture dozing system | Digital load cell based auto admixture dozing system | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Control cabin | Provided | ||||
| Concrete discharge height | 4.2 meter from ground level | ||||
| Total connected power | 48 HP | 53 HP | 53 HP | 77 HP | 98 HP |
| Suggested DG set | 62 KVA | 62 KVA | 82 KVA | 100 KVA | 125 KVA |
| Drum Lifting | Drum Loading by 1 ton. Cap Chain pulley block - movable to tank bitumen input hole. | ||||
| Engine | Kirlosker make or ISI make 6 HP / 6.5 HP / 7.5 HP/8 HP/10 HP AT 1500 rpm. | ||||
| Cleaning | Unique pressure cleaning system after used of spraying by L.D.O / Kerosine / Diesel. | ||||
Optional
- High Capacity Air Blower with 10 Mtr. Length Air pipe for Dust Removal. (Optional)
- Extra arrangement for Gas burner.
- Wood fire boiler.
- Rear wheel spring plates.
- Different Storage Capacity Models available from 1.5 tons to 3 tons.
