Reversible Concrete Mixer Diesel Engine Operated

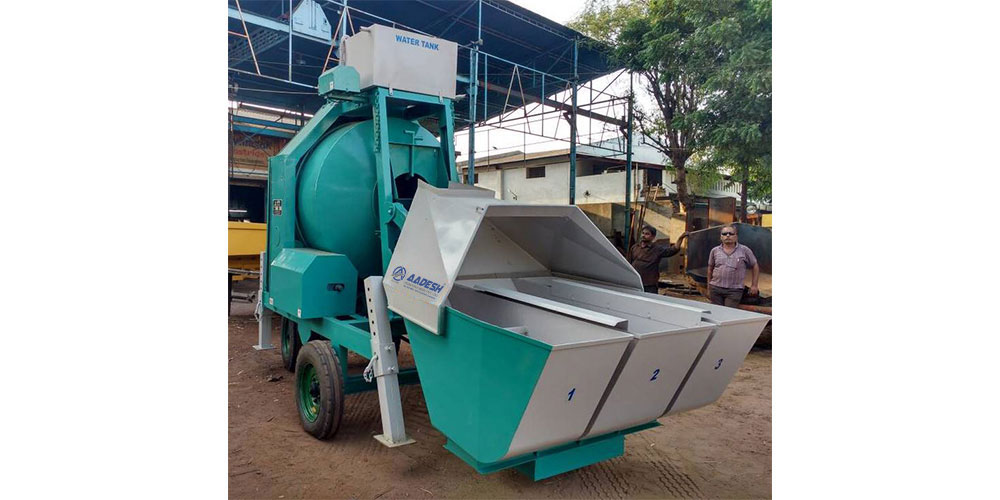

/REVERSIBLE CONCRETE MIXER DIESEL ENGINE OPERATED/1.jpg)

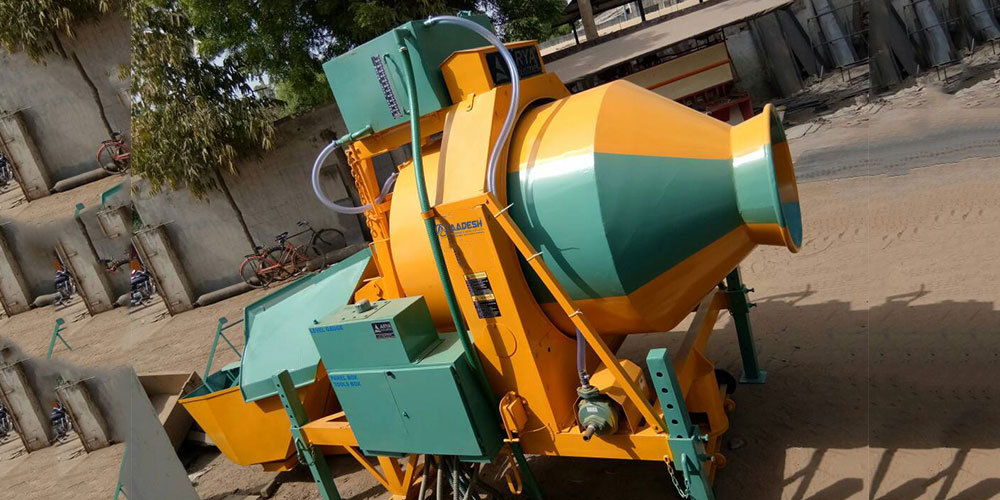

/REVERSIBLE CONCRETE MIXER DIESEL ENGINE OPERATED/2.jpg)
Optional Accessories
- Printing facility.
- Auto Admixture dozing system.
- Single / two / three bin system.
AADESH make RM series is widely used on various construction sites as it’s a compact batching machine having features like separate weighing of material, auto water dozing system, admixture dozing and printing facility and it comes on 4 pneumatic tyres with tow bar facility which makes it easy to move and shift on site.
Technical Specification
| Model | RM 550 E | RM 800 E | RM 1050 E | RM 1400 E |
|---|---|---|---|---|
| Output capacity/ Hour | 8 – 10 M³ | 10 - 12 M³ | 12 - 15 M³ | 15 - 17 M³ |
| Mixer type | Reversible drum type mixer | |||
| Mixing and discharge of concrete | Forward rotation of the drum mix the material and reverse rotation of the drum discharge the concrete | |||
| Main drive of the mixer | 10 HP | 10 HP | 15 HP | 20 HP |
| Material weighing system | Digital load cell based weighing of the material in each bin | |||
| Water tank capacity | 150 litre | 200 litre | 250 litre | 300 litre |
| Water feeding system | Flow rate based accurate water feeding system | |||
| Pneumatic tyres | 4 no | 4 no | 4 no | 4 no |
| Hydraulic tank capacity | 40 litre | 40 litre | 60 litre | 90 litre |
| Centralized lubrication system | Inbuilt centralized lubrication system | |||
| Tow bar facility | Yes | Yes | Yes | Yes |
| Control panel | Micro processor based control panel | |||
| Total connected power | 12.5 HP | 12.5 HP | 17.5 HP | 23 HP |
| Suggested DG set | 25 KVA | 25 KVA | 30 KVA | 40 KVA |
