Asphalt Cum Wet Mix Paver Finisher

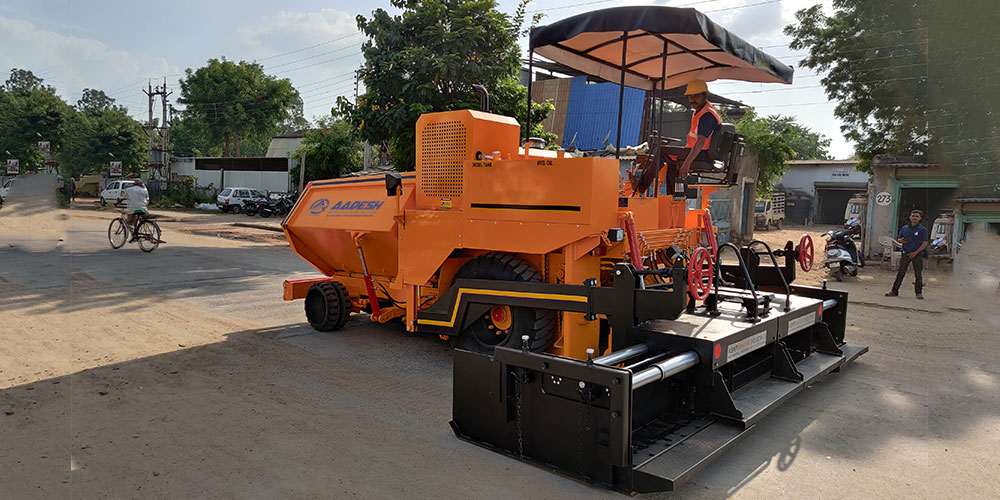

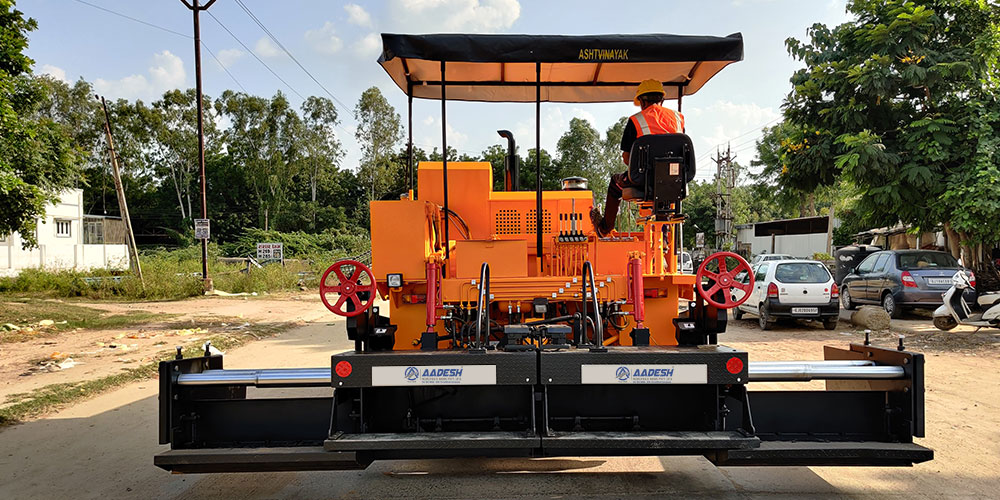

AADESH Paver Finisher
The AADESH Road Paver Finisher With Hydraulically Extendible Screed Is For Contractors Seeking Easy Operation And Maximum Uptime. The Wheeled Paver With Hydraulically Extendible Screed Is A Dual-Application Machine, Handling Both Asphalt And Wet Mix. The Technology And Specifications For The Paver Meet All Governmental Requirements In The Markets, It Has A Presence. The Paver Effortlessly Shifts Between Jobs Featuring Asphalt And Wet Mix, Often Required On Some Governmental Roads.
- Optimal machine uptime.
- Paving tolerances that meet or exceed those specified by the government.
- Exceptional value for acquisition cost.
- Quality aftermarket support.
Special Features
- Duel Application- Bituminous Mix & Wet Mix Macadam Paving.
- Auto parts of TATA / LEYLAND vehicles for easily availability of spares.
- High Ergonomics.
- Innovative modern and solid design technology.
- Rugged construction.
- Precision performance.
- Power Steering.
- Air Brake for effective braking.
- Special Design of chassis for more strength & stability.
- All operational controls are provided at one dashboard.
Other Features
Single Level control for speed gearing is provided which prevents dual Engagement and breaking of gears; All operating levers including panel switch board are handy and within easy reach; All gears and shafts of gear box are made from alloy steel and are hardened and ground for efficient working; Screed is vibrated with hydraulic motor to compact laid layer; All jacks are have the same kind of sealing kit (Piston seal and rod seal of PU material).
Technical Specification
| Description | Asphalt Paver Finisher | Wet Mix Macadam Paver Finisher |
|---|---|---|
| Operting Width x Height | 3230 x 2930 mm | 3230 x 2930 mm |
| Shipping Dimension ( L X W X H ) | 5680 x 2690 x 2540 mm | 5680 x 2690 x 2540 mm |
| Weight (Approx ) | 8 Tons | 9 Tons |
| Tread Width | 1900 mm | 1900 mm |
| Truck Dumping Clearance | 600 mm | 600 mm |
| Wheel Base | 2500 mm | 2500 mm |
| Engine Rating | Kirlosker Make 76 BHP at 2200 RPM (Model : 4R 1040 T) | Kirlosker Make 76 BHP at 2200 RPM (Model : 4R 1040 T) |
| Battery | 12 Volts - 21 Plates ( Heavy Duty ) | 12 Volts - 21 Plates ( Heavy Duty ) |
| Types - Front 2 Nos. | Solid Rubber 558 x 405 x180 mm | Solid Rubber 554 x 405 x 300 mm |
| Types - Rear 2 Nos. | Pneumatic 10.00 x 20 16 Ply | Pneumatic 11.00 x 20 x 16 Ply |
| Paving Thickness | 10 - 200 mm | 10 - 200 mm |
| Paving Speed | 1.25 / 23 Meters / Minute | 1.25 / 23 Meters / Minute |
| Paving Width | 2.5 to 4 Meters Mechanical or Hydraulic Extensions | 2.5 to 4 Meters Mechanical or Hydraulic Extensions |
| Travel Speed | 0 - 16 KM / H | 0 - 16 KM / H |
| Hopper Capacity | 4 Cubic Meters | 4 Cubic Meters |
| Screed Extensions 2 Nos. Each | Mechanical 75 mm, 150 mm, 225 mm, 300 mm, Telescopic Hydraulic - 750 mm | Mechanical 75 mm, 150 mm, 225 mm, 300 mm, Telescopic Hydraulic - 750 mm |
| Screed Heating | Oil Burner | |
| Fuel Tank | 100 Liters | 100 Liters |
| Hydraulic Oil Tank | 130 Liters | 130 mm |
| Auger Diameter | 300 mm | 300 mm |
| Standard Accessories | Tool Box | Tool Box |
| Conveyor Chain | 46 Flats | 92 Flats fitted with H.R. Conveyor Rubber Belt |
| Main Gear Box | Gear Material EN Type | Gear Material EN Type |
| Conveyor Clutch | Suitable for Ashpalt Material Converying | Suitable for WMM - Dry Concrete Material Converying |
