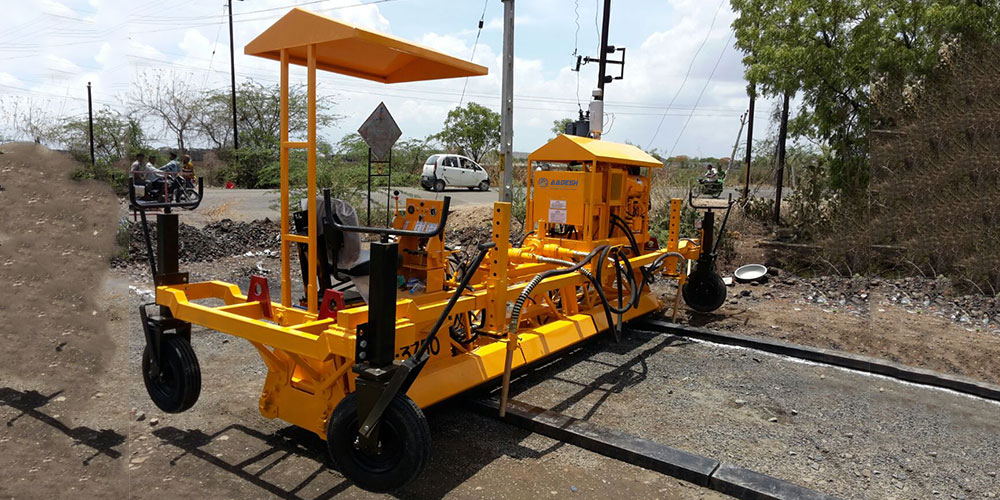

Fix Foam Concrete Road Canal Paver Finisher
Product Specification
| Length | clear working width available from 2 mtr — 6 mtr |
| Cylinderical Finishing Rollers | unique design as we provide two seperate cylindrical finishing rollers one at the front side and another at the back side so better finishing is achieved. |
| Auger Arrangement | full length auger is provided at the front side for spreading extra concrete equally on the both the ends of the slab to achieve even surface. |
| Drive Rollers | total four drive rollers are given where two rollers at each side is given with seperate drive for both the ends with provision of forward and reverse rotation so one can move the paver forward or reverse as per need. |
| Prime Movers | Spreader auger : 3 hp electrical geared motors Cylinderical finishing rollers : 5 hp x 2 nosele. geared motors Drive rollers : 3 hp x 2 nosele. geared motors Total connected load (h.p) : 19 hp Suggested d.g. set : 32 kva |
| Operator Sitting Arrangement | adjustable seat with canopy provided at the top of the paver for the operator |
| Control Panel | mounted on the top of the paver with internal cabling and with wired remote control to operate the paver. |
| Mobility | four mechanical type swivel jacks with solid tyre provided for height adjustment and for moving the paver at the each end of structure. |
Optional Accessories
- Vibrating Needles
- Fabricated Rails
