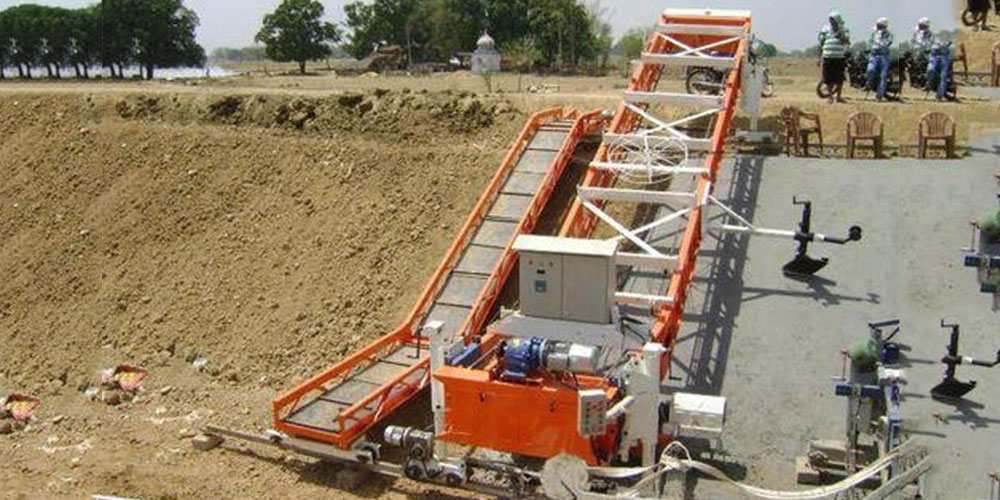

Concrete Canal Paver Finisher Machine
Product Specification
| Model | Fix Foam Concrete Road/Canal Paver Finisher |
|---|---|
| Prime Mover | |
| Driver End Panel | 5 HP Geared Motor |
| Vibratory Cylinder | 5 HP Geared Motor |
| Bogie RH & LH | 1 HP + 1 HP Geared Motor |
| Vibratory Cylinder | 1 HP Electric Motor |
| Traction System | |
| Traction Drive | Two Electrically driven double flanged bogie wheels |
| Traction Speed | 0-22 rpm |
| Vibratory Cylinder Under Carriage | |
| Finished Cylinder 270 mm dia., 1.2 Mtr. long precisely balanced | |
| Extra Long Screw Augur (RH & LH) with hardened flights | |
| Finishing Tolerance: +-3 mm in 12 ft. | |
| Machine Controls | |
| Adjustable Carriage Movement with Variable Speed Drive | |
| Shock Protection | |
| Overload Protection | |
| Construction | |
| Frame | All welded, pin connected main frame. Available in length of 2.40 mtr., 1.2 mtr,, 0.6 mtr., which are infinitely adjustable up to 62 ft. and 110 ft. |
| Finishing Width | Finishing width normally 3ft. (0.9 mtr.) less than frame width and adjustable from lmtr. to 32 mtr. |
Optional Accessories
- Longitudinal & transverse groove cutter
- Longitudinal & transverse pvc water stop inserter attachment
- Transport assembly
- Slope wedges
- Fabricated rail
