FO And Bitumen Storage Tank
Product Specification
| Capacity | 15/20/25/30/40/50 Ton |
| Usage/Application | Bitume Heating & Storage |
| Brand | AADESH |
| Material | MS |
| Insulation Type | Cladding |
| Minimum Order Quantity | 1 Set |
Additional Information
| Payment Terms | L/C (Letter of Credit)/T/T (Bank Transfer) |
Product Description
Bitumen Heating And Storage Tanks offered comes supported by generator, burner and mixer support so as to offer optimum mixing and melting of bitumen and helping it keep warm. Further, these bitumen tanks can be made available in different configuration choices so as to perfectly match up with the specific demands of the customers. Some of its features include supported by different types of CIP cleaning device; adjustable triangle leg; removable feeding tube; option of OEM configuration and others.

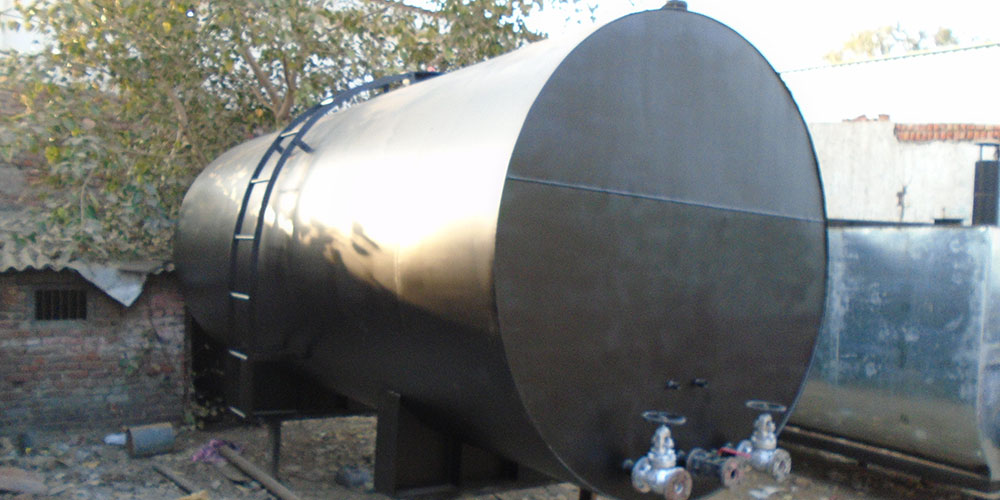

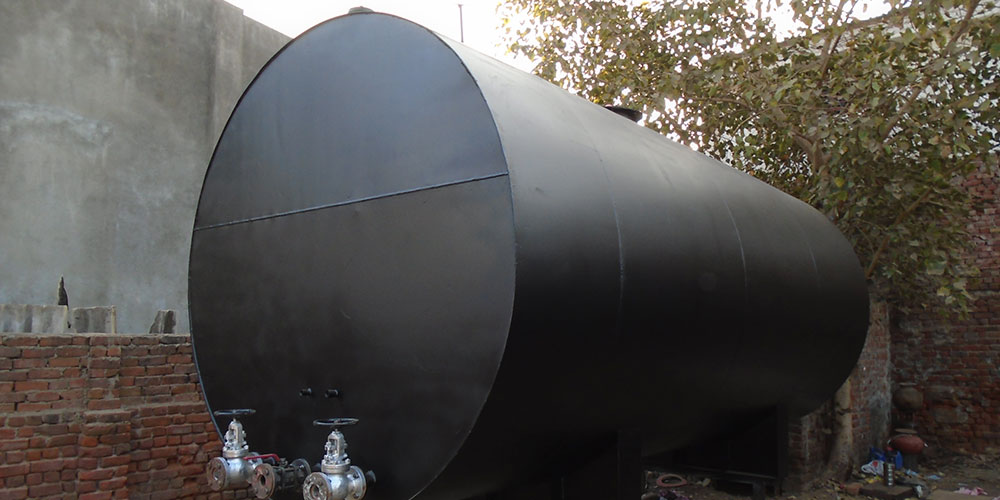

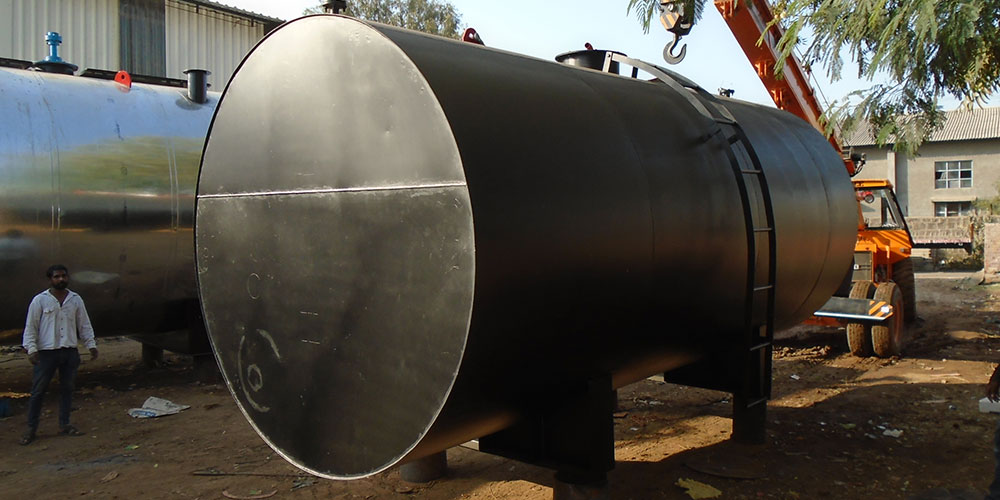

In In-direct heating type tanks-cylindrical in shape& horizontal in position, the bitumen is heated by circulating hot thermic oil through its heating coil. A thermic oil heater with oil fired burner heats the thermic oil & this hot-oil is circulated through the heating coil inside the bitumen tank by an oil pump on heater. A single heater can easily heat nos. of tanks as required in continuous process. The temperature of oil is very well controlled by an auto thermostat on heater and so, bitumen never gets over-heated. Thus, the quality of bitumen (viscosity) never get deteriorated/spoiled in this kind of indirect heating system. Fuel consumed to heat every ton of bitumen is also less compared that for a direct heating system.
