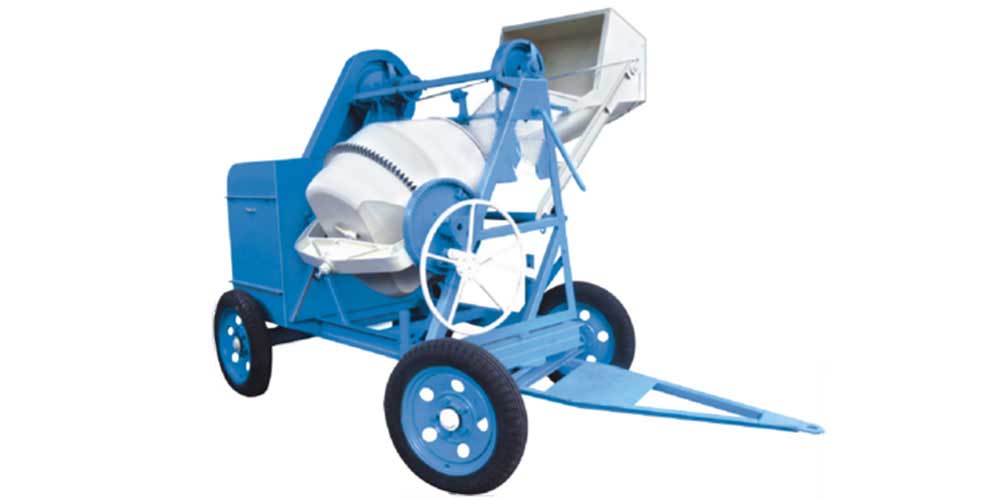

Concrete Mixer With Hydraulic Hopper
Technical Specification
| Unmixed Capacity | 280 Litres (10 cu.ft.) |
|---|---|
| Mixed Capacity | 200 Litres (7 cu.ft.) |
| Drum Speed | 24 to 27 RPM |
| No of bins | Single / two |
| Material weighing system | Digital load cell based weighing |
| Prime mover | Diesel engine/ 3 Phase electrical motor |
| Power rating | 6 HP / 5 HP |
| Hopper lifting system | Hydraulic cylinder operated |
| Control panel | Micro processor based control panel |
| Type | Hydraulic Hopper | With out Hopper |
|---|---|---|
| Unmixed Capacity | 280 Litres (10 cu.ft.) | 280 Litres (10 cu.ft.) |
| Mixed Capacity | 280 Litres (10 cu.ft.) | 200 Litres (7 cu.ft.) |
| Drum Speed | 280 Litres (10 cu.ft.) | 24 to 27 RPM |
| Production Rate | 280 Litres (10 cu.ft.) | 6 to 8 M³/ Hr. |
| Weight (Approx) | 1450 kgs | 950 kgs |
| Towing Speed | 15 km/hr | 15 km/hr |
| Diesel engine power rating | 6 HP | 6 HP |
