Mobile Asphalt Drum Mix plant D M -15-25 TPH
We are instrumental in making available Asphalt Mobile Hot Mix Plant. The Asphalt Mobile Hot Mix Plant that we offer is marked by robust construction, optimum performance and durability due to which it is widely demanded in the market.
Further, we are a credible Manufacturer, Exporter and Supplier of Apollo Hot Mix Plant, Asphalt Mobile Hot Mix Plant India.
Components
- Continuous electronic belt weighing system.

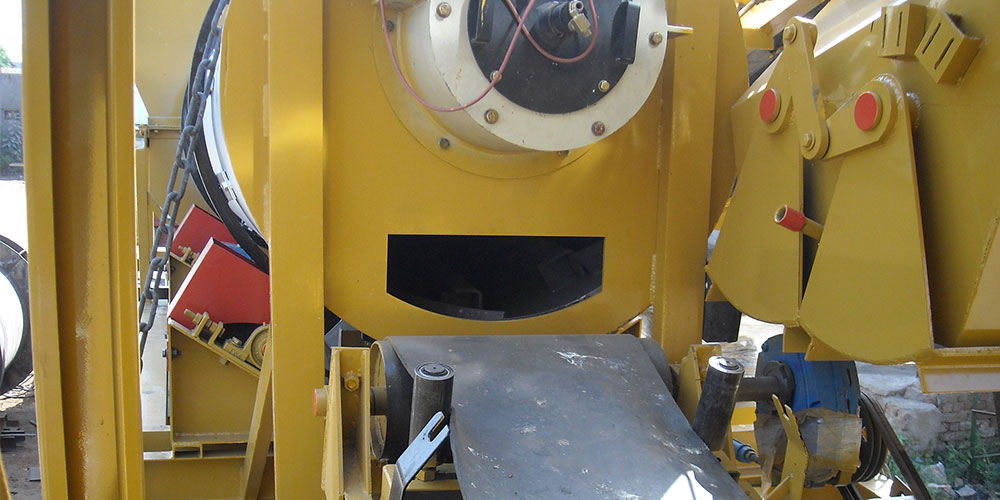

- Gathering cum Slinger conveyor for transfer for aggregate from bin feeder to drier.

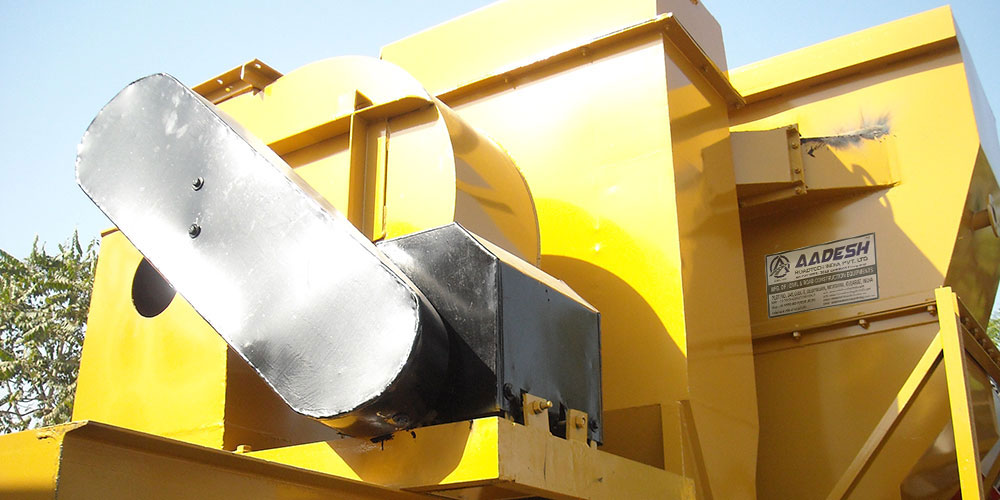

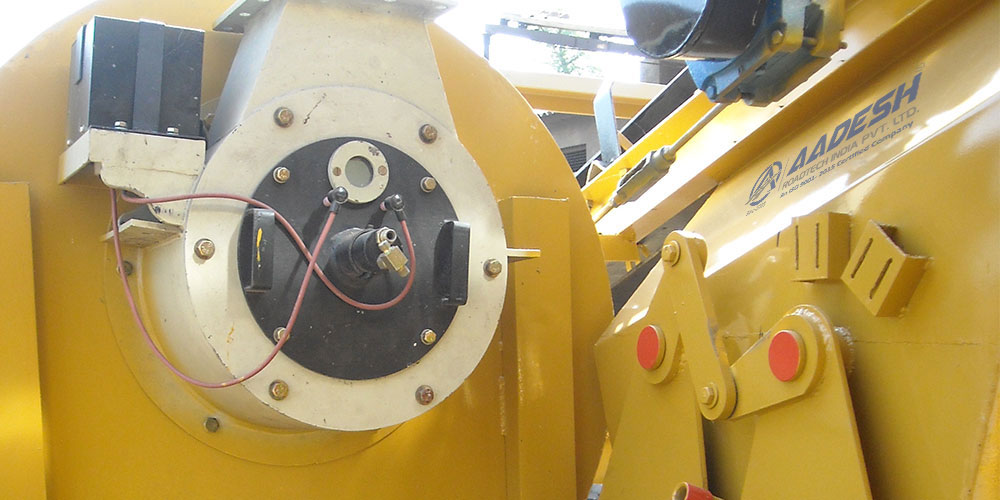

- Thermo coater for drying and mixing drum with Multi clone dry dust collector & automatic jet burner.

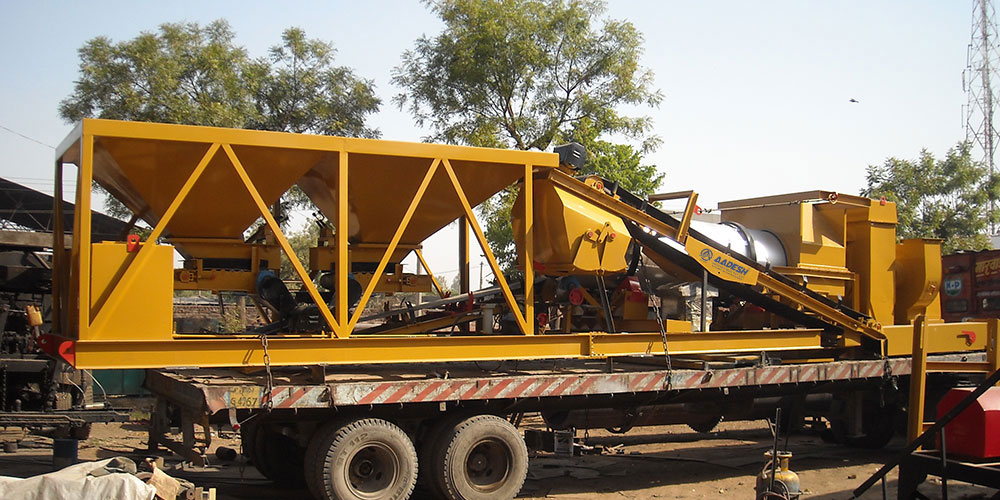

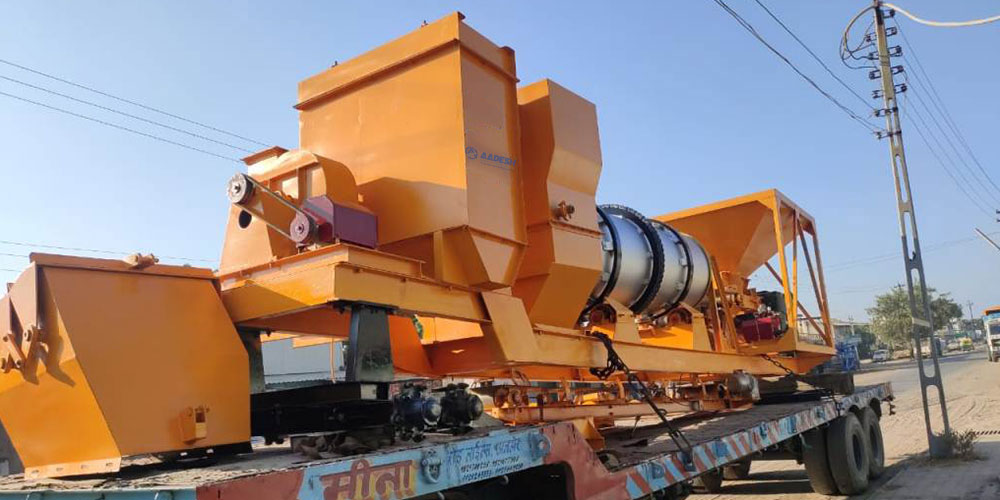

- All units are suitably mounted on two chassis complete with axles, wheel hubs, tow bar with pin etc.
- Inclined load out conveyor with a gob hopper for unloading of mix material without segregation.

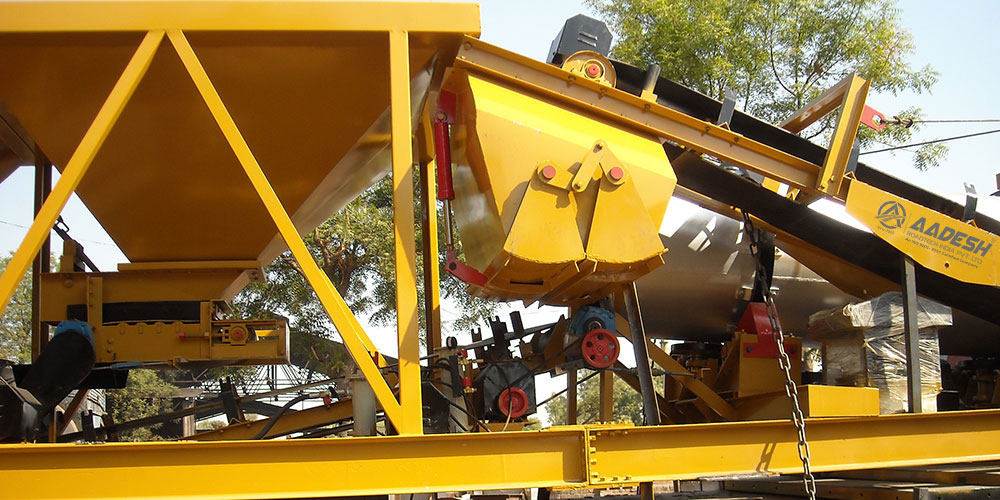

- 2 x 2 cold bin feeders for feeding two different sizes of aggregate in specified proportion with independent variable speed synchronized drive under each bin. Total storage capacity of 15 Tons.
- 1 no. bitumen tank of capacity 12,000 litters, with automatic pressure jet burner and bitumen piping.
- Pre-wired with cables, sockets, plugs, junction box to inter connect the units.
- Centralized, insulated Control cabin with a provision to fit an air conditioner, with all the controls for plant operating and process control.
Technical Specification
| Weight | 100-1000 kg |
| Voltage | 220 V |
| Automatic Grade | Automatic |
| Driven Type | Automatic |
| Warranty | 1 year |
| Power(W) | 3-6kw |
